6-Piece HSS 4241 Stubby Brad Point Wood Bit Set | 1/4" Hex Shank (3/32"-3/8") | Compact Woodworking Bits for Right Angle Drills

1. Product Overview

The Professional 6-Piece Stubby Series is the ultimate solution for drilling in ultra-tight spaces. Engineered specifically for use with Right Angle Drills and compact impact drivers, these bits feature a shortened overall length to provide maximum clearance where standard bits fail to fit.

Forged from premium HSS 4241 (High-Speed Steel), this set offers superior heat resistance and durability, ensuring clean, precision-centered holes in hardwoods, softwoods, and composite materials. It is the definitive choice for cabinet installers and furniture makers working in confined quarters.

2. Technical Specifications Table

All bits in this set are precision-ground for 100% concentricity and balanced drilling.

3. Engineering Excellence & Key Advantages

Optimized for Right Angle Drills

The "Stubby" design significantly reduces the combined length of the drill and bit. This allows you to drill perfectly perpendicular holes inside cabinets, between joists, or in narrow corners where a traditional drill bit would be too long to maneuver.

HSS 4241 Industrial Strength

Unlike standard carbon steel, our HSS 4241 construction maintains its hardness at high temperatures. This is critical when using high-RPM cordless drivers, as it prevents the cutting edges from dulling during rapid, repetitive drilling.

Precision Center Spur (Brad Point)

The sharp center tip acts as a pilot, ensuring your hole starts exactly where you marked it. It eliminates "bit walking," even on polished wood surfaces or laminated veneers.

Clean-Exit Double Spurs

Dual outer spurs shear the wood fibers at the edge of the hole before the main cutting edge engages. This results in "Zero-Splinter" entry and exit holes, preserving the aesthetic quality of your woodworking projects.

4. Professional Applications

• Confined Space Cabinetry: Drilling shelf pin holes and hardware pilot holes inside pre-assembled furniture.

• Tight-Corner Framing: Accessing narrow spaces between wall studs or floor joists for wiring and fasteners.

• On-Site Installation: The perfect companion for right-angle attachments in HVAC and plumbing wood-boring tasks.

• Veneer & Plywood: Clean, blow-out-free drilling in delicate laminated surfaces.

5. Packing & Logistics (B2B Standard)

We provide multiple packaging solutions to suit retail displays or industrial bulk supply.

Option A: Professional Retail Set (Standard)

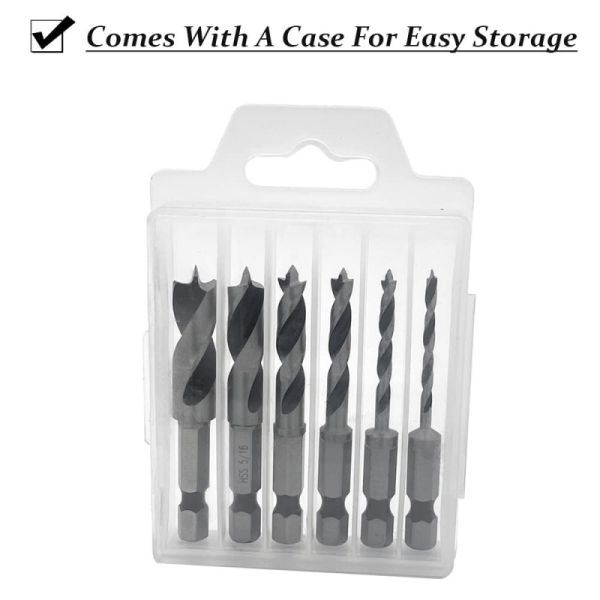

• Storage Case: High-impact ABS indexed case with clear size markings.

• Inner Protection: Anti-rust oil coating on each bit to prevent corrosion during sea transit.

• Unit Weight: Approx. 120g - 150g per set (including case).

Option B: Bulk Industrial Packing

• Inner Pack: 10 sets per moisture-proof white inner box.

• Master Carton: 100 sets per reinforced 5-layer corrugated export carton.

• Carton Dimensions: Approx. 35 x 25 x 20 cm.

• Gross Weight: Approx. 13kg - 16kg per carton.

OEM & Customization

• Laser Marking: Your brand logo and SAE sizes can be laser-etched directly on the hex shanks.

• Custom Labels: Support for EAN/UPC barcodes and localized technical stickers on the back of the case.

• Case Color: Standard black/orange or custom colors for bulk orders (MOQ applies).

6. FAQ (Frequently Asked Questions)

Q: Why use HSS 4241 instead of standard carbon steel?

A: HSS 4241 provides much higher heat resistance and toughness. This means the bits stay sharp for longer and are much less likely to snap when subjected to the high torque of an impact driver or right-angle drill.

Q: Will these fit all 1/4" quick-change chucks?

A: Yes. The universal 1/4" power hex shank is precision-machined to fit all standard impact drivers, quick-release bit holders, and right-angle drill attachments.

Q: Are these bits suitable for deep-hole drilling?

A: These are "Stubby" bits designed for access and precision in shallow to medium-depth holes. For holes deeper than 1.5 inches, we recommend clearing chips frequently or using our standard-length auger series.
