Single Tip SDS Plus Drill Bit For Reinforced Concrete And Masonry
SDS concrete Drill Bit of Description

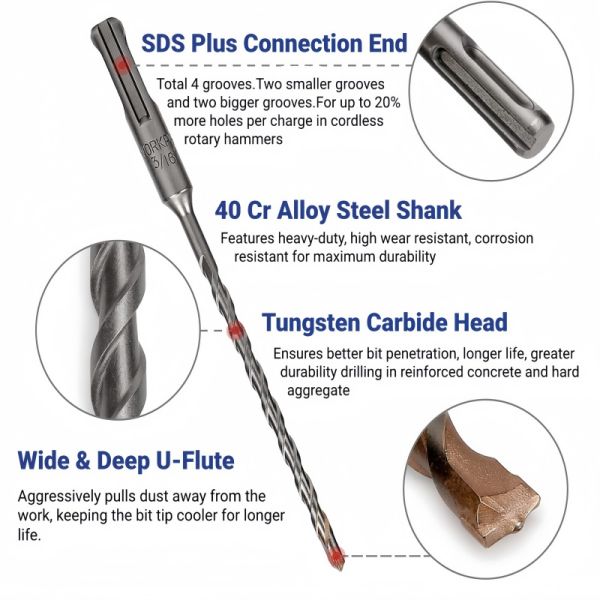

1. Self-centering carbide tip ensuring fast cut speeds and maximum life.
2. Engineered for reduced vibration.
3. Design cleans debris out for fast, efficient drilling.
4. With strength and maximum durability, especially when drilling deep holes.
5. Ideal for anchoring and through-hole applications in concrete and masonry.
| Diameter |
Flute Length |
Overall Length |
Diameter |
Flute Length |
Overall Length |
| mm |
mm |
mm |
Inch |
Inch |
Inch |
| 4.0-10.0 |
50 |
110 |
5/32″-3/8″ |
2″ |
4″ |
| 4.0-16.0 |
100 |
160 |
5/32″-5/8″ |
4″ |
6″ |
| 5.0-26.0 |
150 |
210 |
3/16″-1″ |
6″ |
8″ |
| 6.0-26.0 |
200 |
260 |
1/4″-1″ |
8″ |
10″ |
| 6.0-26.0 |
250 |
310 |
1/4″-1″ |
10″ |
12″ |
| 6.0-26.0 |
290 |
350 |
1/4″-1″ |
12″ |
14″ |
| 6.0-26.0 |
350 |
410 |
1/4″-1″ |
10″ |
12″ |
| 8.0-30.0 |
390 |
450 |
5/16″-1-1/8″ |
12″ |
14″ |
| 8.0-30.0 |
540 |
600 |
5/16″-1-1/8″ |
14″ |
16″ |
| 10.0-30.0 |
740 |
800 |
3/8″-1-1/8″ |
16″ |
18″ |
| 10.0-30.0 |
940 |
1000 |
3/8″-1-1/8″ |
22″ |
24″ |
| 10.0-40.0 |
1140 |
1200 |
3/8″-1-3/4″ |
24″ |
26″ |
What is a SDS max drill bit?
The SDS Max is, as the name implies, are larger and have more indentations in them for a better grip on the bit.
You usually find SDS Max drills used for commercial work, such as the construction, renovation, or demolition
of larger buildings.
Professional Applications
Our SDS bits are the primary choice for heavy-duty tasks in various environments:
-
Concrete & Reinforced Concrete: Essential for structural anchoring and bridge construction.
-
Masonry & Brickwork: Ideal for HVAC installations, electrical conduits, and plumbing in residential projects across Europe and Russia.
-
Natural Stone: Precision drilling in granite, basalt, and limestone common in Middle Eastern architectural projects.
-
Demolition & Renovation: Reliable performance for through-hole drilling and site preparation.
FAQ (Frequently Asked Questions)
Q1: What is the difference between SDS-Plus and SDS-Max?
A1: SDS-Plus (10mm shank) is typically used for lighter masonry work with smaller hammers. SDS-Max (18mm shank) is designed for heavy-duty hammers used in large-diameter drilling and demolition.
Q2: Can these bits drill through rebar?
A2: Yes, our 4-Cutter (Cross Head) series is specifically designed to cut through light rebar without jamming, ensuring smooth operation in reinforced concrete.
Q3: Do your bits meet European DIN standards?
A3: Absolutely. Our production adheres to ISO 5468 and DIN 8039 standards.
Q4: How do you ensure quality for the Russian and Middle Eastern markets?
A4: We use premium 40Cr steel that remains resilient in the extreme cold of Russia and specialized surface coatings to prevent rust in the high-humidity/high-heat environments of the Middle East.
